Technical parameters
- Standard Case:
- DN15-DN100
- Product Type:

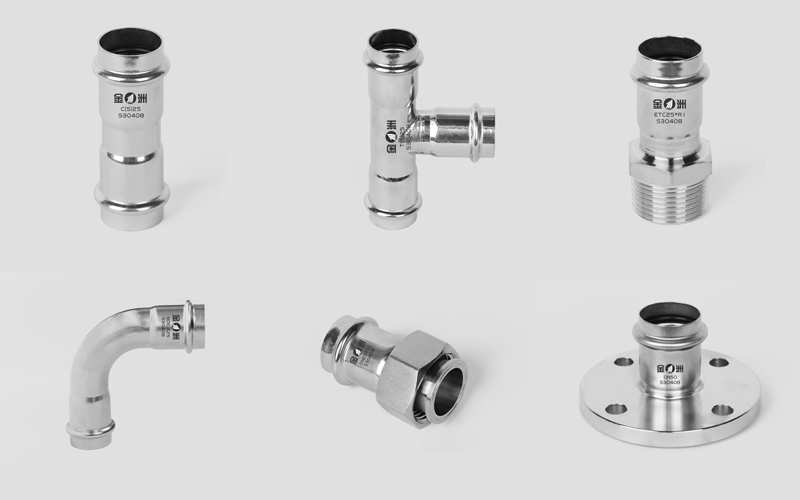

- Equal-diameter joints, reduced-diameter joints, tees, elbows, threaded conversion joints, jammed flange joints, pipe caps, etc
- Label Accurate:
- GB/T 19228.1-2024, CJ/T 152-2016
- Material Quality:
- 304, 304L, 316, 316L, S11972
Product Performance
-
Excellent sealing
Multi-surface physical crimple design, ensure that the pipe fittings are closely combined, and the joint will not rotate due to external forces such as rotation and drawing, causing leakage. And the high quality sealing ring is loaded into the groove, so that the pipe crimped to form a super sealing pressure interval, so that the pipeline system is more solid and reliable. -
Convenient construction
Professional construction tools, no threshold operation use, fast insertion during construction, one key switch automatic clamping operation, to solve the construction tools must be operated by professional and technical personnel. -
High dimensional accuracy
Stainless steel double clamping pipe material is made of high quality stainless steel, with precision instrument cutting processing, reduce the error, making its size accuracy is very high. -
Strong anti-vibration ability
The double clamping connection improves the seismic power. When the pipeline vibrate, the destructive force first acts on the bearing outside the sealing ring of the pipe fitting, effectively protecting the R mouth of the sealing ring from deformation and preventing water leakage caused by vibration.
| Type | Form | Code name | Socket end connection mode | |
|---|---|---|---|---|
| Tube cap | -- -- -- | CAP | S shape | |
| Equal diameter joint | -- -- -- | C | ||
| Reduced diameter joint | -- -- -- | CR | ||

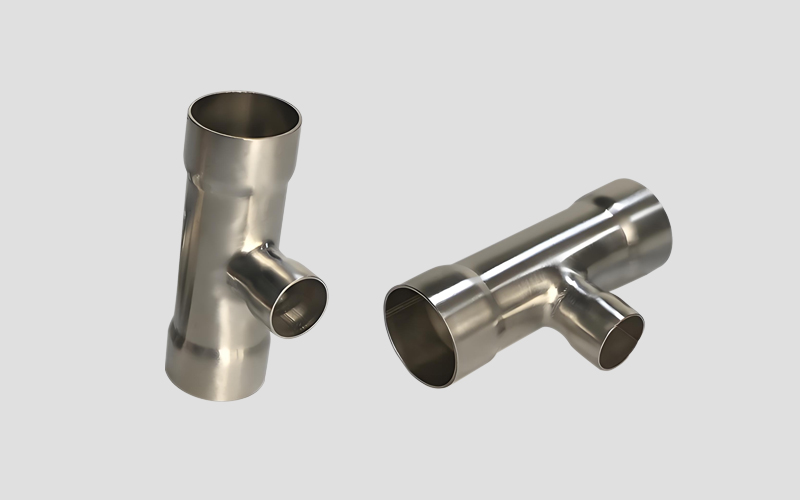

| Three way connection | Equal diameter | -- -- -- | no | |
| Reduction of diameter | -- -- -- | no | ||
| 90° elbow | Type A | 90E-A | ||
| Type B | 90E-B | |||
| 45° elbow | Type A | 45E-A | ||
| Type B | 45E-B | |||
| Internal thread switching joint | -- -- -- | ITC | ||
| External thread switching joint | -- -- -- | ETC | ||
| Clamp type flange joint | -- -- -- | KF | ||
| Note: Both ends of type A interface are caps; One end of type B interface is a socket, the other end is a socket (straight pipe) | ||||
